品牌:DCT
Dimensions (w x l x h):722 x 630 x 532 mm
Maximal size of PCB:210 × 297 mm
Sensitivity of the conductivity sensor:0,0001 μS/cm
起订:1台
供应:88888台
发货:65天内
发送询价

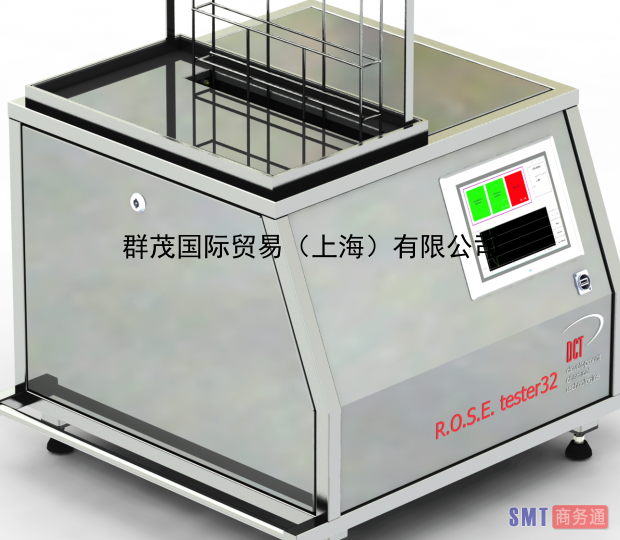

ROSE Tester 32
Device designed to measure the amount of ionizable impurities of a PCB. Complies with standard IPC-TM-650, 2.3.25 (Static extraction method). Resulting value: μg NaCI Eq./cm2.
As the manufacturer, DCT company can customize dimension of the device according to the customer requirements
Process chamber made from electrochemically polished stainless steel.
Distribution formed tubes from teflon.
Sensitivity of probe is 0,0001 uS/cm - the most sensitive probe available on the market.
The device tests PCBs using the method of the static extraction.
Enables two types of solution: 50/50 and 75/25.
The device is able to heat up the solution up to 40 °C. For the testing, the PC is not needed.
Easy-to-use measurement wizard consisting of 3 steps.
After the start of measurement, the devide mixes the solution equally.
Streaming helps to release impurities from the PCB.
The device includes special software ROSE View for the management of measurement data in the PC.
