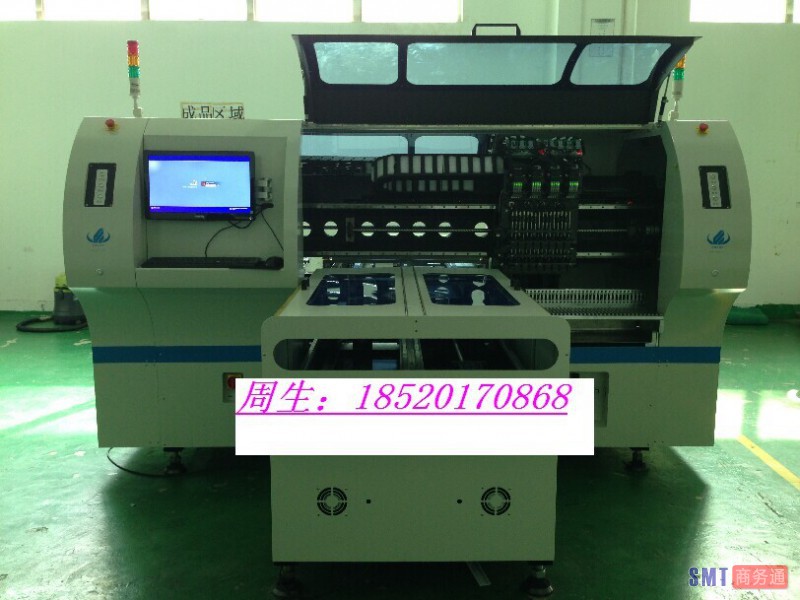

品牌:易通贴片机
长:2950mm
宽:2150mm
高:1500mm
起订:1台
供应:100台
发货:20天内
|
描述 Description |
||
|
外形尺寸 Dimension |
长*宽*高Length*Width*Height |
2950mm*2150mm *1500mm |
|
|
总重量Total Weight |
2000kg |
|
线路板 PCB |
线路板尺寸PCB Length Width |
Max:1200*350mm Min:50*50mm |
|
|
线路板厚度PCB Thickness |
0.5-3mm |
|
|
线路板固定方法PCB Clamping |
可调压气动Adjustable pressure pneumatic |
|
|
贴片方式Mounting Mode |
群取分贴、分取分贴Group picking and separate placing\separate picking and separate placing |
|
操作系统 OS |
软件Software |
Windows XP |
|
|
显示器Display |
LED显示器LED Monitor |
|
|
输入装置Input Device |
键盘、鼠标Keyboard,Mouse |
|
视觉系统 Vision System |
摄像机数量No. of Camera |
进口相机四套4 sets of imported camera |
|
|
|
两组飞行识别视觉对中 + MARK校正Vision for the flight identification + MARK correction |
|
|
贴片精度Mounting Precision |
±0.02mm chip |
|
|
贴片高度Mounting Height |
13±2mm |
|
|
贴片速度Mounting Speed |
85000 CPH |
|
|
贴装零件范围Components |
LED、电容、电阻、IC、异形元件（0402-13mm）LED,capacitors,resistors,shaped components(0402-13mm) |
|
|
元件跨距Components Speed |
0.2mm |
|
|
使用电源Power |
380AC 50HZ |
|
|
电源功率Power Consumption |
6kw |
|
|
压缩空气Air Force |
0.5mpa |
|
|
使用环境Operating Environment |
23℃±2 |
|
|
导轨传动Conveyor Transmission |
最大长度：1200mm Max Length:1200mm |
|
|
传输速度Transmission Direction |
＞500mm/s |
|
|
传输方向Transmission Direction |
单向（左→右或右→左）Single(left→right or right→left) |
|
|
传送方式Transmission Mode |
在线online drive |
|
|
空气压力Air pressure |
＞5.0kg/cm2 |
|
|
空气消耗量Air consumption |
＜200l/min |
|
|
电气控制Electrical control |
易通自主研发Independent research and development by ETON |
|
|
运动控制卡模块2套Motion control card module 2 sets |
易通自主研发Independent research and development by ETON |
|
|
XY轴驱动方式X,Y Axies Driving |
伺服电机Servo motor |
|
喂料系统 Feeding syetem |
可放置送料器数量No. of feeders |
2*20支8mm飞达 2*20PCS 8mm feeders |
|
|
吸嘴数量No. of nozzles |
双模组共18只吸嘴Dual mode,totally 18 nozzles |
|
|
飞达类型Feeder type |
电子飞达Electronic feeder |
